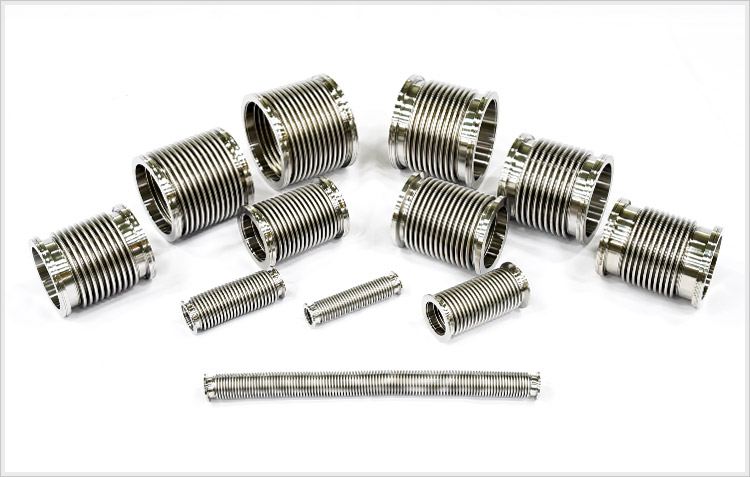

Bellows
- Applicable to semiconductor equipment pipes & vacuum pipes
Type
-
- 1. NW FLANGE TYPE
-
- 2. DC FLANGE TYPE
-
- 3. TUBE END TYPE
-

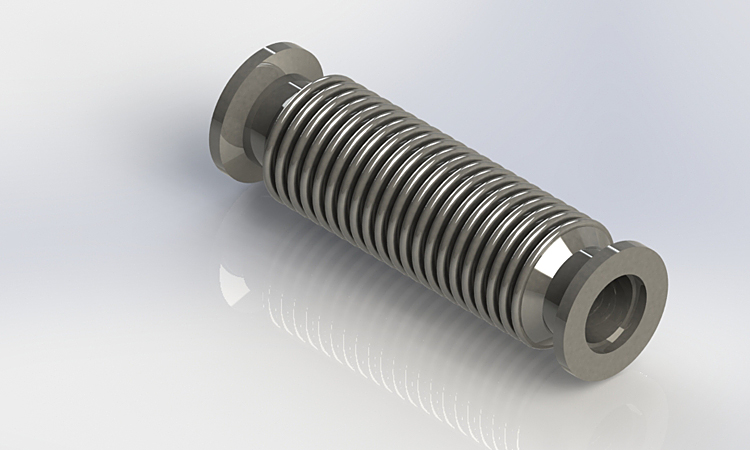

- ① NW FLANGE TYPE
-

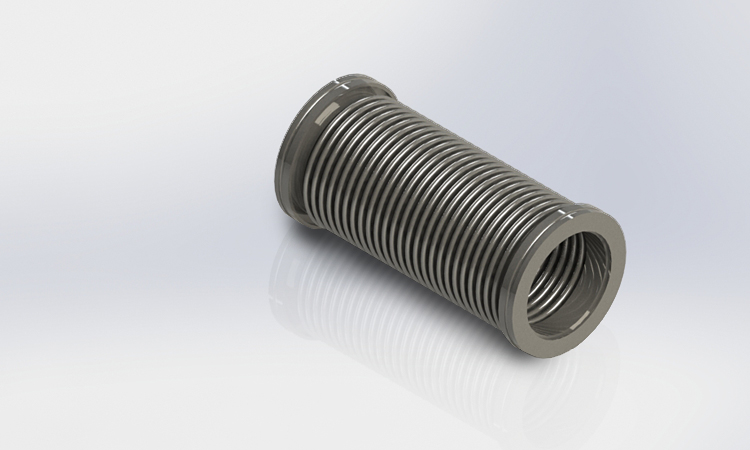

- ② DC FLANGE TYPE
-

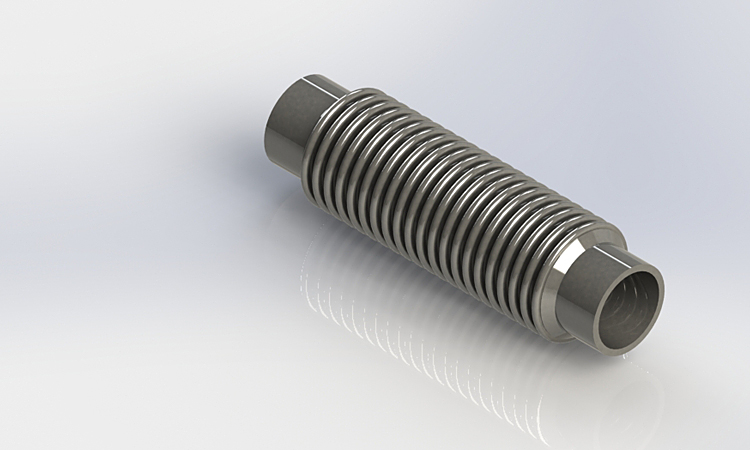

- ③ TUBE END TYPE
SPEC
| LIST | MATERIAL | SIZE | PRESSURE |
|---|---|---|---|
| 1. NW FLANGE TYPE | STS304 | 16A~250A | 10 -9 Torr |
| 2. DC FLANGE TYPE | STS304 | 63A~250A | |
| 3. TUBE END TYPE | STS304 | 16A~250A |
Advantages & Features
- Alleviation of fluid pulsation
- Application of section operating
- Constant vibration section
- Air tight maintenance
- If line piping fails
- Repeated durability
